Magnetic Base Brackets

Bracket Kit Set

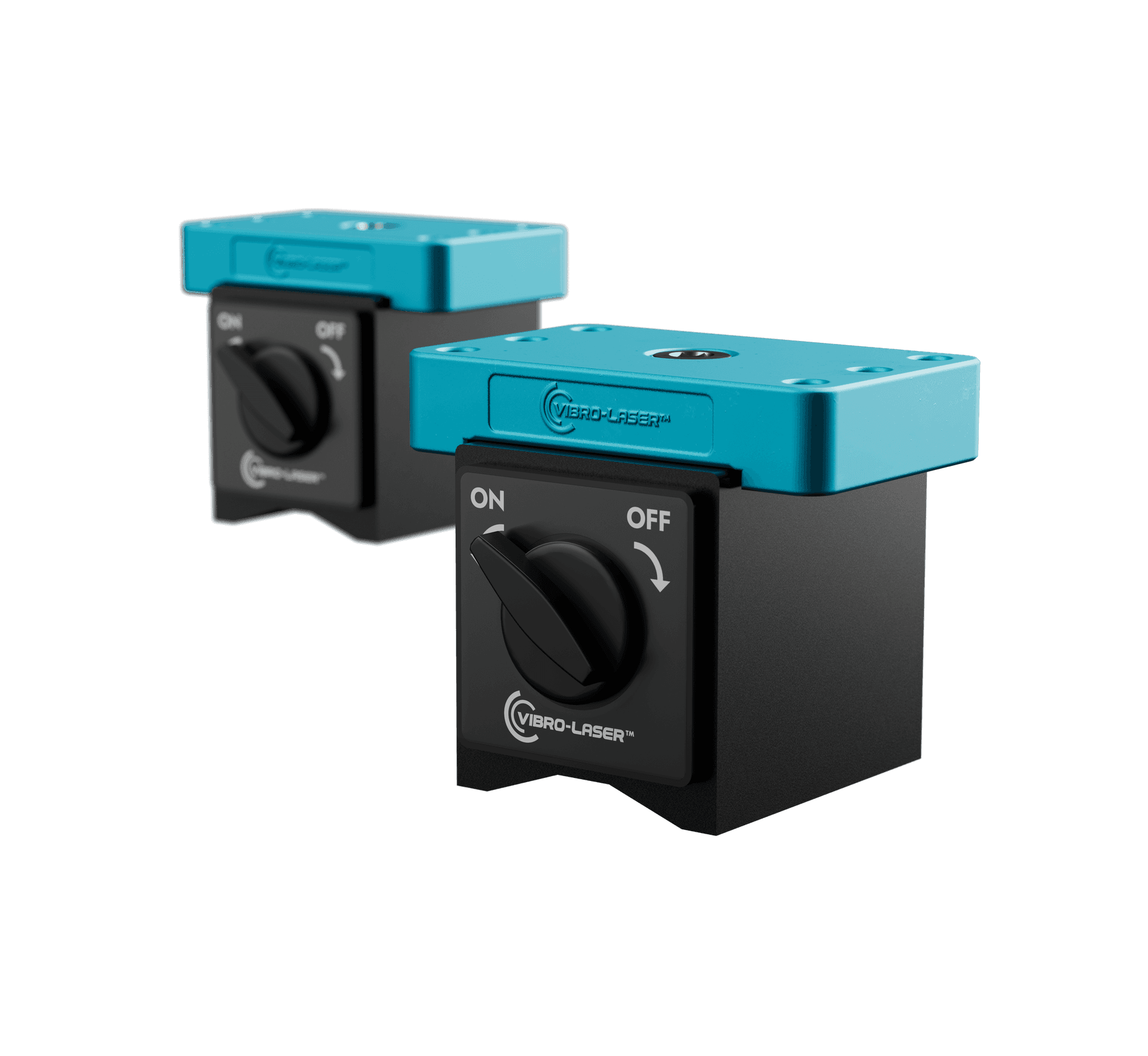

Package contents: X2 Magnetic bases, X2 Fixation screws, X2 Adapters

What's included?

X2
Magnetic bases
X2
Fixation screws supplied without rods
X2
Adapters

Magnetic Base Brackets are specialized mounting solutions designed for securely attaching measuring units on large diameter shafts with powerful magnets to ensure a firm hold, providing a reliable and stable connection for laser alignment.

Buy this product

We intent to establish long-term partnerships founded on our shared success.

Please do not hesitate to contact one of our partners for more details about VIBRO-LASER measurement and alignment tools.

Find a distributors
