Shaft Alignment System Plus Kit

New Soft Base

Explore horizons with a brand new user interface — a revolutionary interface with 3D visualisation created for you will turn the alignment process into an exciting journey to success! Try it now and feel the difference!

What's new?

#

Settings Screen

Automatic tolerance determination based on user-specified RPM.

#

Preview Results

Real-time display of intermediate measurement results during the alignment process.

#

Results Screen

Animated visualization of shaft axis misalignment and required corrective adjustments.

#

Live Alignment

Real-time alignment guidance system with step-by-step user instructions to enhance measurement accuracy.

#

Reports

Customizable report templates with logo replacement, editable text fields, toggleable report sections, and PDF export functionality.

Case content

Measuring units

Measuring units

2 Units (S, M)

The M and S measuring units use laser and CCD technology for precise shaft misalignment measurements. Mounted on opposing shafts, they provide real-time updates, optimizing operations and reducing downtime.

Chain V-Brackets

Chain V-Brackets

2 Units

V-bracket with chain is used to fix the measuring units on the shaft diameter 25 – 225 mm / 1 in – 8.6 in.

Extension chain

Extension chain

2 Units (with carabiner)

Used for mounting on larger diameter shafts. Installed in addition to the standard chains.

Extension Rods

Extension Rods

4 Units (120 mm)

Serve to increase the mounting height of the measuring units on the fixture.

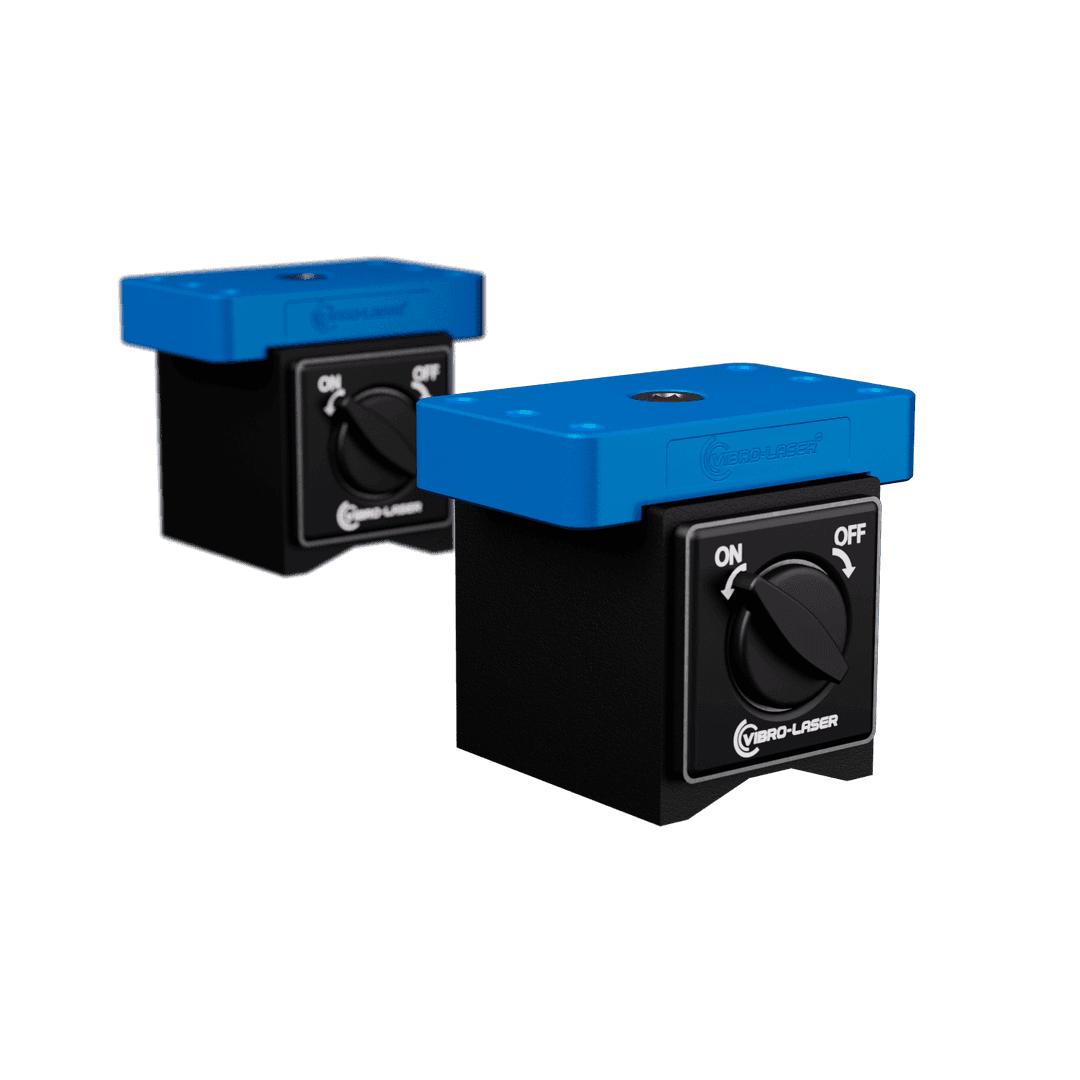

Magnetic Base Brackets

Magnetic Base Brackets

2 Units

Measuring heads can be mounted onlarge diameter shafts with the magnetic base.

Measuring tape

Measuring tape

1 Unit

Used to perform measurements before operating the measurements system.

Display unit

Display unit

1 Unit (Optional)

A unique tablet computer built specifically to increase fieldwork efficiency.

Power adapter & USB cable

Power adapter & USB cable

1 Unit / 2 Units

Adapter operates in collaboration with a USB cable to recharge the measuring units.

Tightening wrench

Tightening wrench

1 Units

Serves for the possibility of changing the attachment struts.

Features

Clock Method
SmartAngle™
Bolt or Base Bound

The 9-12-3 o'clock method is the basic method for taking measurements. It requires a clear set of units at the 9, 12 and 3 o'clock positions.

Take measurements at any three positions of the shaft rotation. Turn shafts in any direction at least by 40 degrees and register the results.

Get any pair of feet locked on the machine. Enabling this option will ensure precise results when aligning base-bound or bolt-bound machines.

Horizontal Alignment

Horizontal Alignment

Step-by-step, responsive interface with 3D-animations which simplifies the alignment process, and reduces the alignment time.

Vertical/Flange Mounted Machines

Vertical/Flange Mounted Machines

Measure and align vertical and flange machines with a program specially created for this purpose.

Soft Foot Check

Soft Foot Check

The program analyzes the position of machine feet, indicates if any of them need adjustment, and saves all values for the further work.

SmartFilter™

SmartFilter™

Reduces the influence of external visual challenges such as lighting, steam, draft and other visually impairing variables while taking measurement.

Sensor Readings

Sensor Readings

Monitor the data coming directly from the measuring units on the screen of your device.

Save Job

Save Job

Allows to save the status of an alignment job at any time and return to the job later.

User Defined Tolerance

User Defined Tolerance

Specify the alignment tolerance and user definable tolerances in advance according to the machine rotation speed.

Thermal Growth Expansion

Thermal Growth Expansion

Automatic compensation system for the thermal growth expansion of machines allows to keep the efficiency of alignment.

User Friendly Reports

User Friendly Reports

Save alignment reports in PDF, add photos of the unit, the company logo and work notes when necessary.

VibeDr™

VibeDr™

Is responsible for reducing the vibration impact while taking measurement. Filter feature can be used to achieve reliable results even in high vibration conditions.

SWITCHIT™

SWITCHIT™

Simplify the measurements by selecting the location of the machine relative to an operator.

With the VIBRO-LASER BASE Model, you can easily align pumps, motors, gearboxes, and other equipment. The user-friendly interface requires no training, enabling a quick start.

 With its simple and intuitive interface featuring 3D animation, the system significantly simplifies the operator's tasks and suitable for both experienced engineers and novice users.

Technical Data

Operating time

> 20 hours

Measuring accuracy

0.3% ± 7um

Dimensions

90 mm x 60 mm x 32 mm

(3.5in x 2.3in x 1.2in)

Detector type

Latest generation of industrial linear detector

Detector receiver length

30 mm

Detector resolution

0,001 mm

Protection class

IP67

Dust-tight and protected against water

Operating temperature

From -20° С to +55° С

(-4 to 131°F)

Connection type

Bluetooth 4.0

Laser emission

Diode laser with wavelength 635 nm, class II, 1 mW

Distance between units

Up to 10 m

(33 ft)

Downloads

Browse through the VIBRO-LASER product guidelines and materials available in various languages.

Buy this product

We intent to establish long-term partnerships founded on our shared success.

Please do not hesitate to contact one of our partners for more details about VIBRO-LASER measurement and alignment tools.
