Shaft Alignment Pro Model Kit

The VIBRO-LASER PRO Kit offers various measurement methods, such as continuous and multipoint methods, providing the flexibility required to attain an optimal measurement outcome.

The availability of the multipoint method is suitable for aligning machines with plain bearings or machines without spherical plain bearings.

Pro Kit

Measuring units

2 Units (S, M)

The M and S measuring units use laser and CCD technology for precise shaft misalignment measurements. Mounted on opposing shafts, they provide real-time updates, optimizing operations and reducing downtime.

Chain V-Brackets

2 Units

V-bracket with chain is used to fix the measuring units on the shaft diameter 25 – 225 mm / 1 in – 8.6 in.

Extension chain

2 Units (with carabiner)

Used for mounting on larger diameter shafts. Installed in addition to the standard chains.

Extension Rods

4 Units (120 mm)

Serve to increase the mounting height of the measuring units on the fixture.

Magnetic Base Brackets

2 Units

Measuring heads can be mounted onlarge diameter shafts with the magnetic base.

Magnetic V-Brackets

2 Units

Magnetic V-brackets are used for mounting the measuring units on the side of the coupling with strong magnets when chains cannot be used.

Offset Brackets

2 Units

Offset brackets are used when the space is limited. This type of mounting allows the racks to be moved out for convenient installa- tion of the measuring units.

Measuring tape

1 Unit

Used to perform measurements before operating the measurements system.

Power adapter & USB cable

1 Unit / 2 Units

Adapter operates in collaboration with a USB cable to recharge the measuring units.

Display unit

1 Unit (Optional)

A unique tablet computer built specifically to increase fieldwork efficiency.

Tightening wrench

1 Units

Serves for the possibility of changing the attachment struts.

Features

The 9-12-3 o'clock method is the basic method for taking measurements. It requires a clear set of units at the 9, 12 and 3 o'clock positions.

SMARTANGLE ™

Take measurements at any three positions of the shaft rotation. Turn shafts in any direction at least by 40 degrees and register the results.

Soft Foot Check

The program analyzes the position of machine feet, indicates if any of them need adjustment, and saves all values for the further work.

Bolt or Base Bound

Get any pair of feet locked on the machine. Enabling this option will ensure precise results when aligning base-bound or bolt-bound machines.

Select Coupling Type

This option allows you to specify the coupling type used for shaft connection – i.e., short flex or spacer shaft.

User Defined Tolerance

Specify the alignment tolerance and user definable tolerances in advance according to the machine rotation speed.

SmartFilter™

Reduces the influence of external visual challenges such as lighting, steam, draft and other visually impairing variables while taking measurement.

Sensor Readings

Monitor the data coming directly from the measuring units on the screen of your device.

VibeDr™

Is responsible for reducing the vibration impact while taking measurement. Filter feature can be used to achieve reliable results even in high vibration conditions.

Save Job

Allows to save the status of an alignment job at any time and return to the job later.

User Friendly Reports

Save alignment reports in PDF, add photos of the unit, the company logo and work notes when necessary.

Thermal Growth Expansion

Automatic compensation system for the thermal growth expansion of machines allows to keep the efficiency of alignment.

SWITCHIT™

Simplify the measurements by selecting the location of the machine relative to an operator.

Live Move Mode

Allows live aligning in any angle position of the measuring units. When it is not possible to install the measuring units strictly in the 9–12–3 hours position.

Shims Calculator

Allows user simulate changes in alignment results with virtual movement of the machine in horizon- tal and vertical planes.

Repeatability Table

Allows choose any from the last 10 measurements that you have taken based on which further actions will be carried out.

Horizontal Alignment

A unique memory management system allows you to save progress at any stage of the process and resume whenever you want.

With the VIBRO-LASER BASE Model, you can easily align pumps, motors, gearboxes, and other equipment. The user-friendly interface requires no training, enabling a quick start.

With its simple and intuitive interface featuring 3D animation, the system significantly simplifies the operator's tasks and suitable for both experienced engineers and novice users.

Technical Data

Operating time

> 20 hours

Measuring accuracy

0.3% ± 7um

Dimensions

90 mm x 60 mm x 32 mm

(3.5in x 2.3in x 1.2in)

Detector type

Latest generation of industrial linear detector

Detector receiver length

30 mm

Detector resolution

0,001 mm

Protection class

IP67

Dust-tight and protected against water

Operating temperature

From -20° С to +55° С

(-4 to 131°F)

Connection type

Bluetooth 4.0

Laser emission

Diode laser with wavelength 635 nm, class II, 1 mW

Distance between units

Up to 10 m

(33 ft)

Buy this product

We intent to establish long-term partnerships founded on our shared success.

Please do not hesitate to contact one of our partners for more details about VIBRO-LASER measurement and alignment tools.

Find a distributors

accessories

Standart V-Brackets

V-bracket with chain is used to fix the measuring units on the shaft diameter 25 – 225 mm / 1 in – 8.6 in.

Slim V-Brackets

Slim VIBRO-LASER offset brackets are specifically designed stylish accessories for situations where there is limited space between the coupling and the machine, making it impossible to install a standard v-bracket for laser alignment.

Magnetic Base Brackets

Magnetic Base Brackets are specialized mounting solutions designed for securely attaching measuring units on large diameter shafts with powerful magnets to ensure a firm hold, providing a reliable and stable connection for laser alignment.

Extension Chains

They are used for large shafts to extend the standard chain, when its length is insufficient.

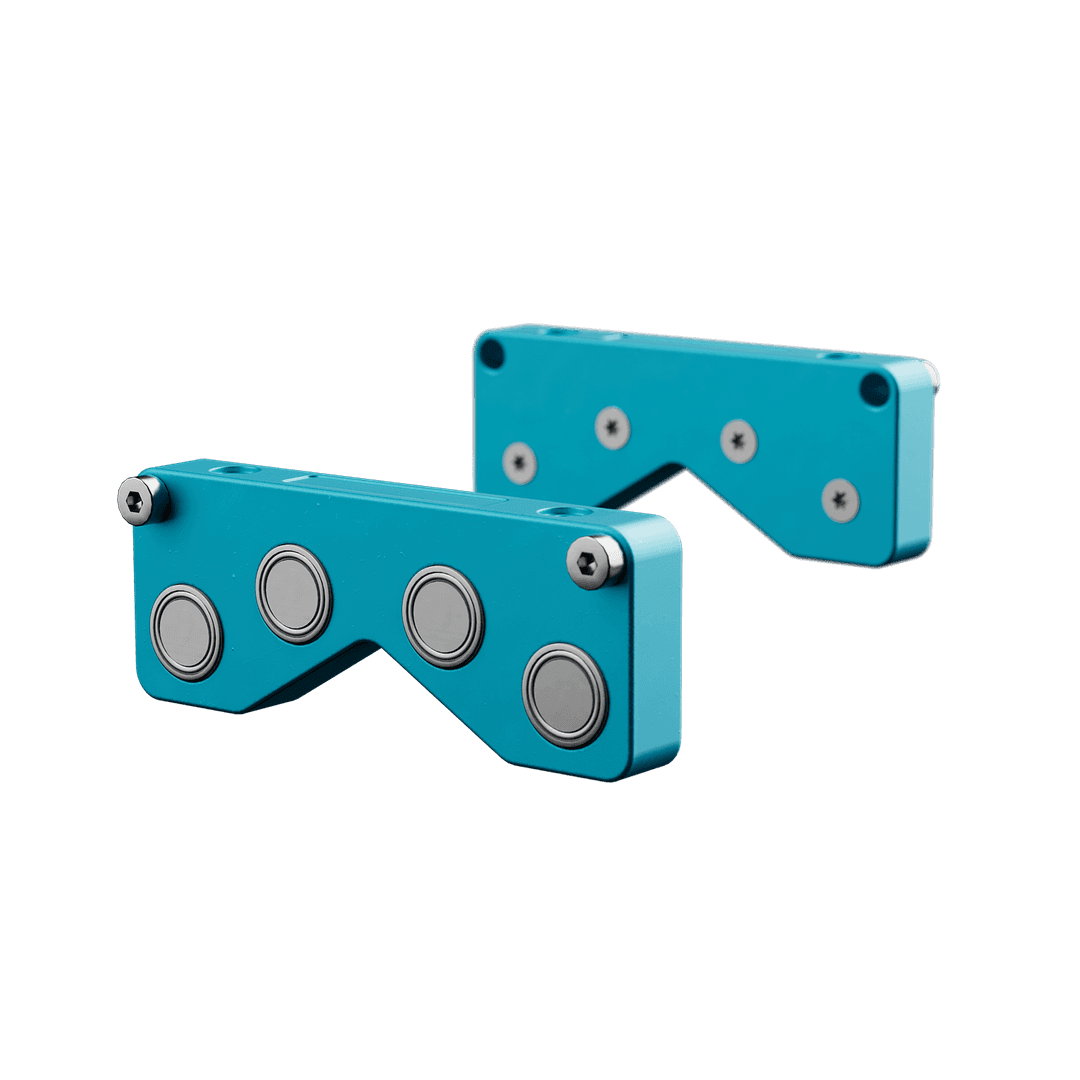

Magnetic V-brackets

VIBRO-LASER Magnetic V-brackets are specialized mounting solutions designed for securely attaching measuring units to the side of a coupling. These brackets utilize powerful magnets to ensure a firm hold, providing a reliable and stable connection for laser alignment, allowing for easy installation and removal of the measuring units as needed.

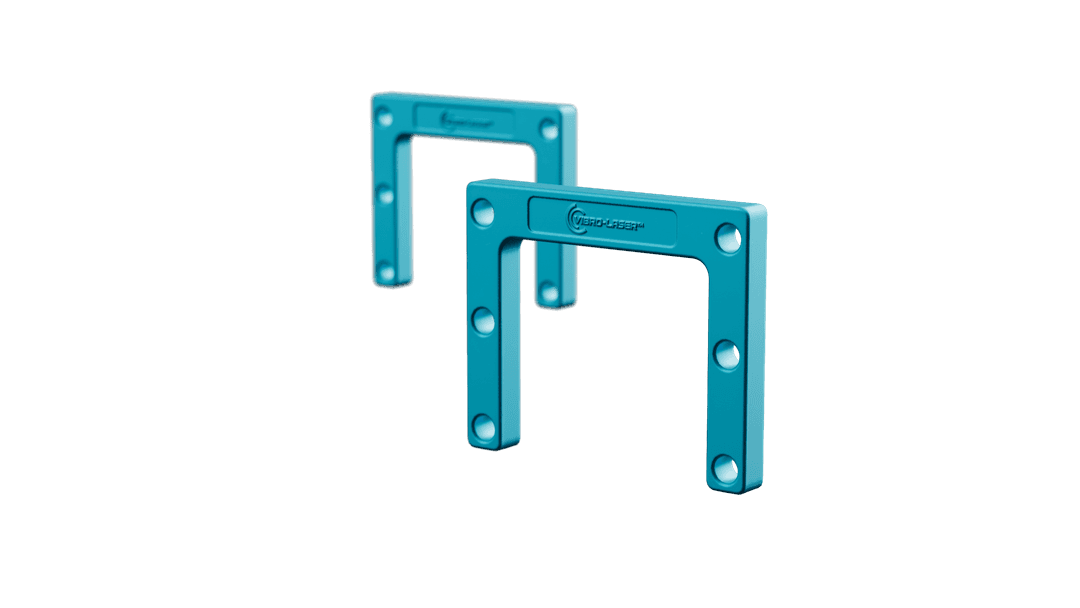

Offset Brackets

VIBRO-LASER offset brackets are engineered for environments where space constraints and the presence of projecting machine parts pose challenges to the installation and operation of laser alignment units.

Non-rotating Brackets

VIBRO-LASER non-rotating shaft brackets are specifically designed to provide a stable and secure attachment point for measurement devices, ensuring accurate readings during shaft alignment without the risk of interference from rotational motion.

Extension Rods 120 mm

The VIBRO-LASER 120 mm rod spare part includes a set of 120 mm (4.7 in) threaded rods designed for use with shaft alignment tools.

Extension Rods 160 mm

The VIBRO-LASER 120 mm rod spare part includes a set of 160 mm (6.3 in) threaded rods designed for use with shaft alignment tools.

Extension Rods 300 mm

The VIBRO-LASER 120 mm rod spare part includes a set of 300 mm (11.8 in) threaded rods designed for use with shaft alignment tools.

Extension Rods 250 mm

The VIBRO-LASER 120 mm rod spare part includes a set of 250 mm (9.8 in) threaded rods designed for use with shaft alignment tools.

Cardan Shaft Bracket Fixture

Cardan shaft set is used to mount bracket fixtures between the machines with offset axes of rotation. Discover how to effectively align machine shafts using a cardan shaft bracket to overcome offset issues.

VLRTC Display Unit

The Display Unit by VIBRO-LASER is the ultimate rugged tablet combining versatility and durability. Its ergonomic design ensures ease of use and is optimized for field maintenance. Li-ion Battery 8-hour battery life based on test configurations. Storage: eMMC 64GB.
