Magnetic V-brackets

Brackets Set

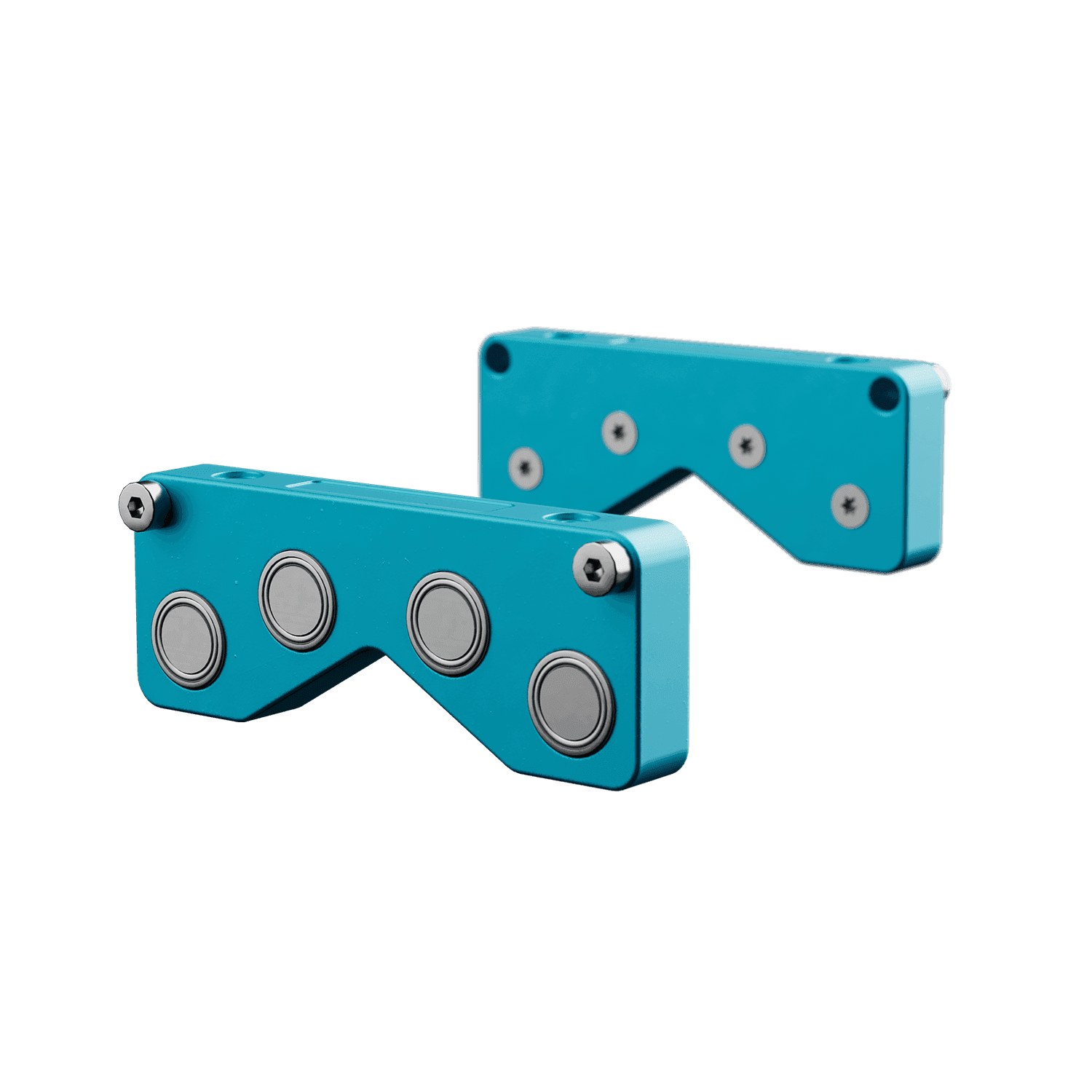

What's included?

X2
Magnetic V-brackets supplied without rods

Magnetic V-brackets are specialized mounting solutions designed for securely attaching measuring units to the side of a coupling. These brackets utilize powerful magnets to ensure a firm hold, providing a reliable and stable connection for laser shaft alignment.

Buy this product

We intent to establish long-term partnerships founded on our shared success.

Please do not hesitate to contact one of our partners for more details about VIBRO-LASER measurement and alignment tools.
