Standart V-Brackets

Brackets Set

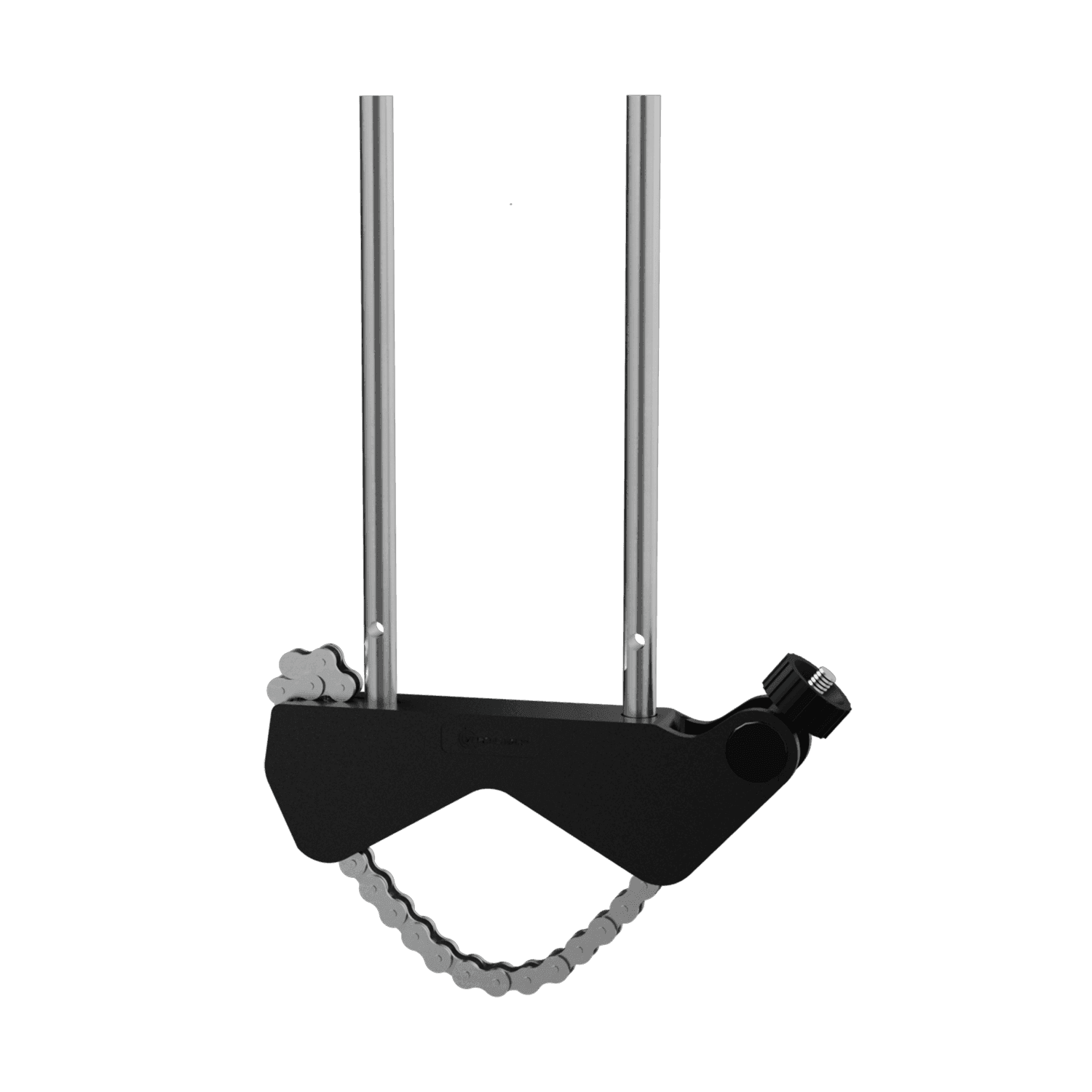

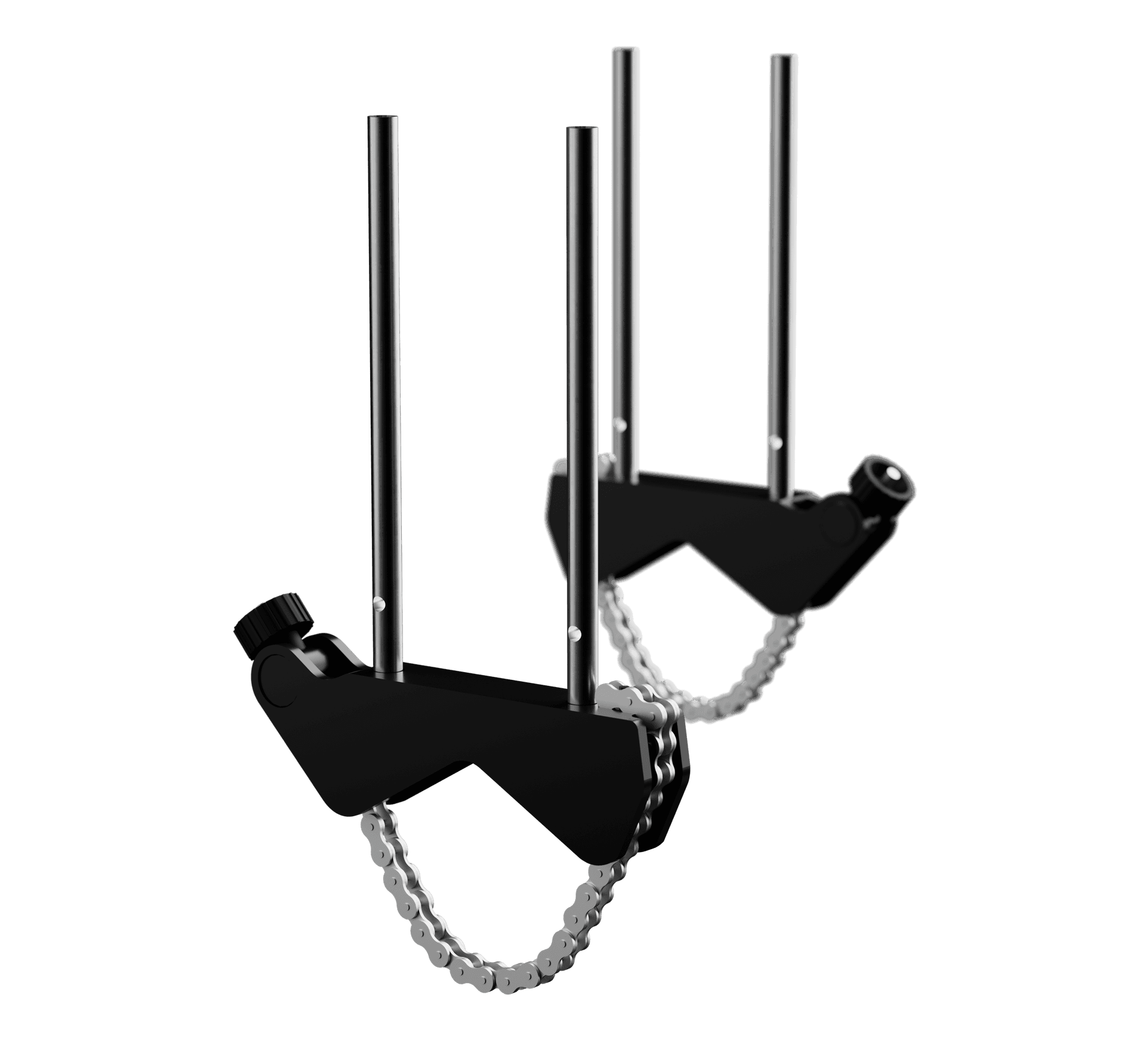

Package contents: X1 Standard V-bracket, X2 Threaded rods, X1 Chain

What's included?

X1
Standard V-bracket
X2
Threaded rods of 160 mm / 6.3 in
X1
Chain w/screw end, 500 mm / 19,7 in

V-bracket with chain is used to fix the measuring units on the shaft diameter 25 – 225 mm / 1 in – 8.6 in.

Buy this product

We intent to establish long-term partnerships founded on our shared success.

Please do not hesitate to contact one of our partners for more details about VIBRO-LASER measurement and alignment tools.

Find a distributors
