VIBRO-SCANNER

VIBRATION APP

The application is designed to work with the new line of wireless instruments: VIBRO-SCANNER and VIBRO-SCOPE

vibration preview

What's new?

Express [/Diagnostics/] - software feature illustration

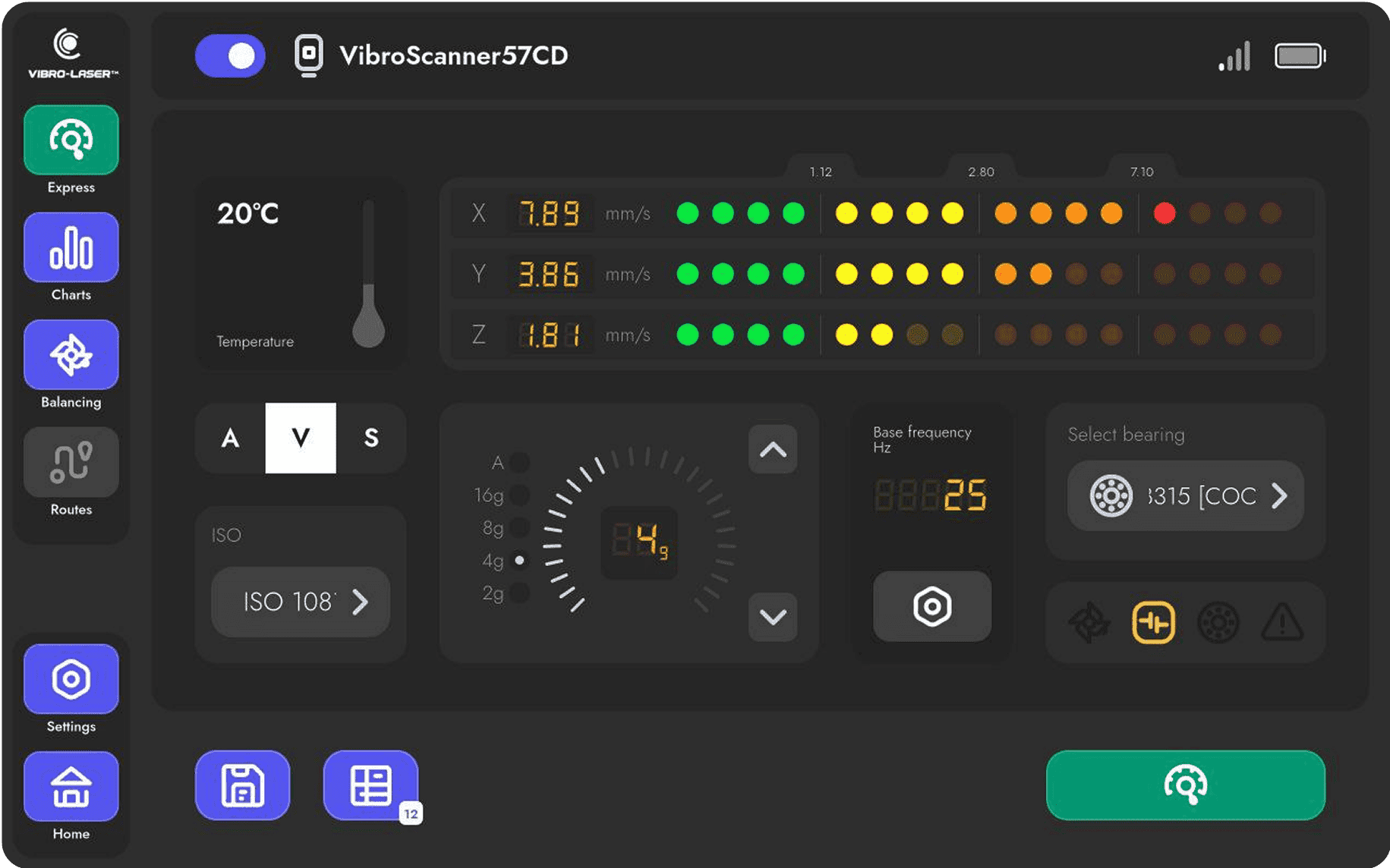

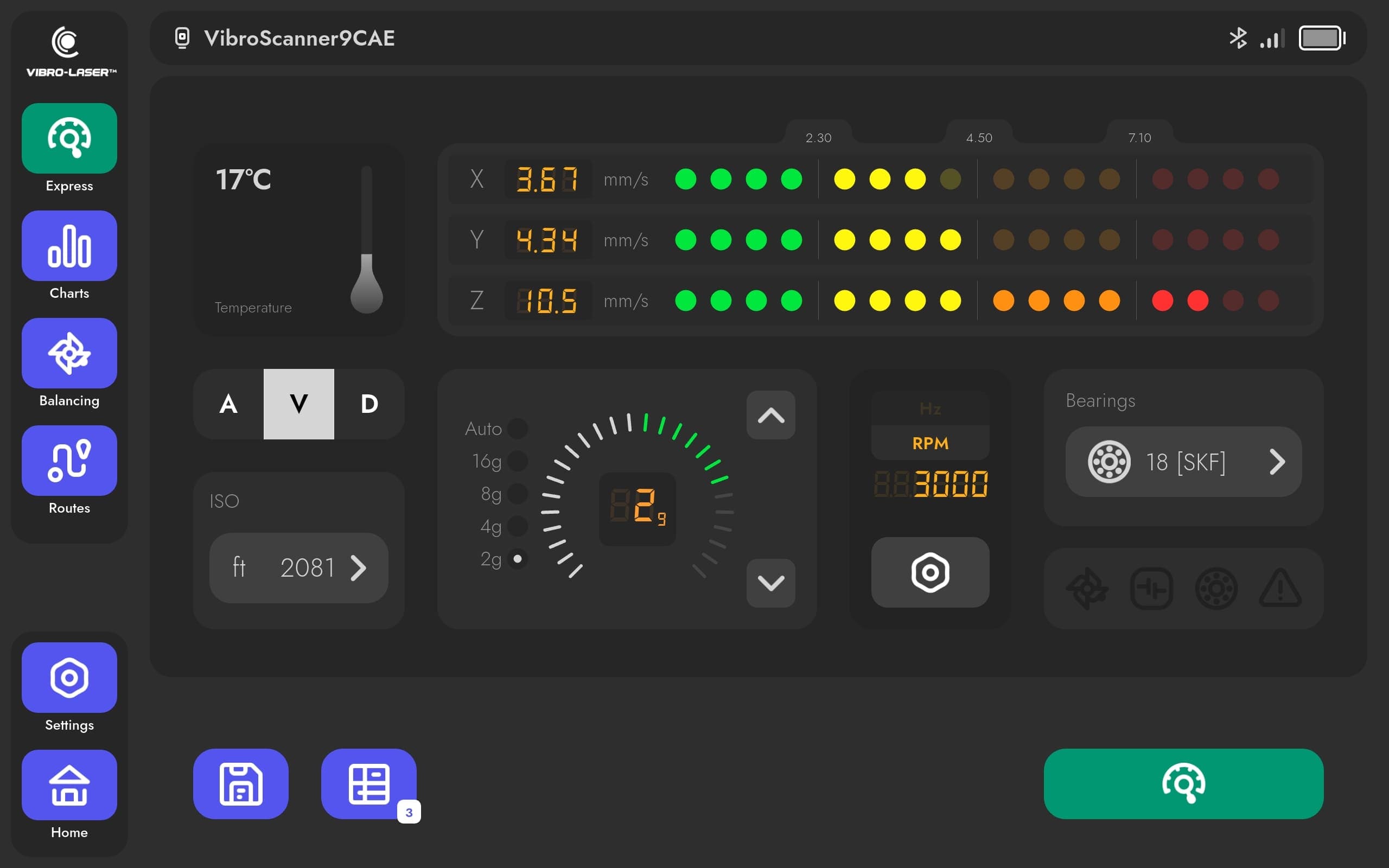

Express Diagnostics

Real-time vibration readings across three axes, temperature data and automatic fault detection — all on a single screen.

Diagnostic [/Charts/] - software feature illustration

Diagnostic Charts

Spectral and 1/3‑octave band analysis, frequency markers, data saving and comparison — everything you need for precise diagnostics.

Balancing - software feature illustration

Balancing

Balancing in up to two planes and two points, using error vector theory — with full 3‑axis (X, Y, Z) calculation support.

Bearing [/Database/] - software feature illustration

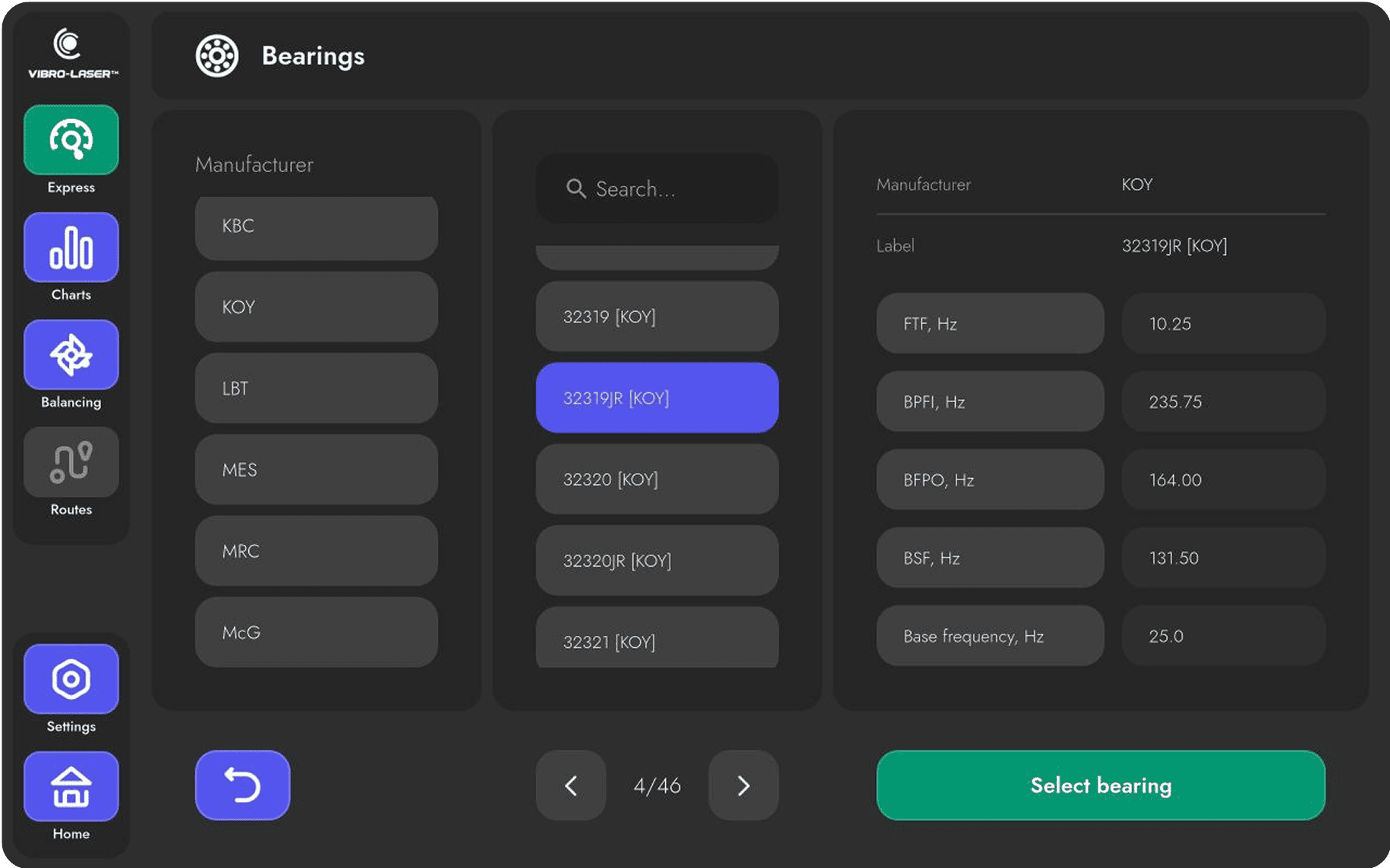

Bearing Database

Built-in bearing lookup tool helps save time during diagnostics and when setting up equipment parameters.

Standards-Based [/Assessment/] - software feature illustration

Standards-Based Assessment

The application automatically evaluates equipment condition using predefined thresholds or ISO standards — helping you quickly determine vibration severity.

Report [/Generation/] - software feature illustration

Report Generation

Generate reports from your measurement and balancing results. Save and export data — fast, simple, and efficient.

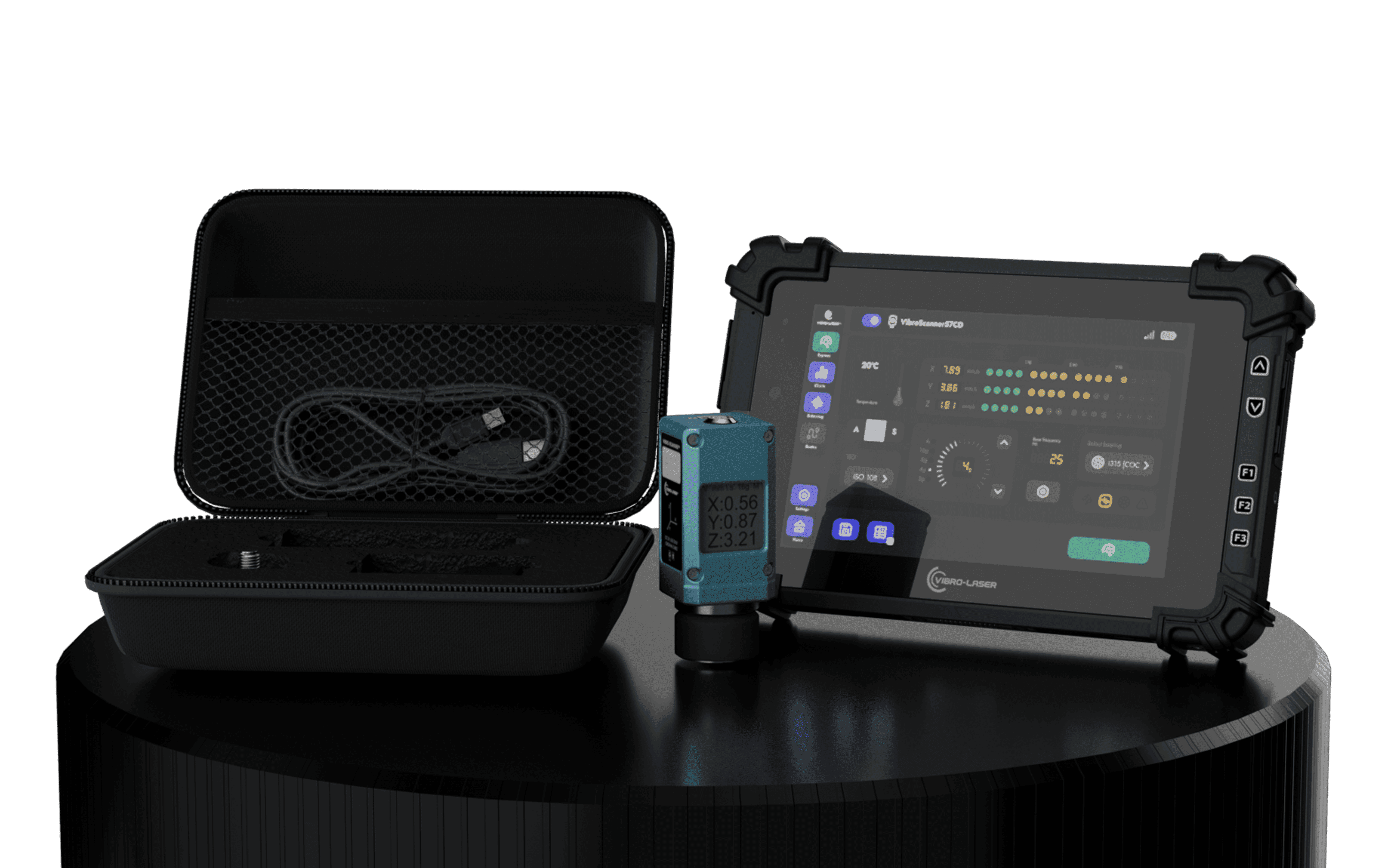

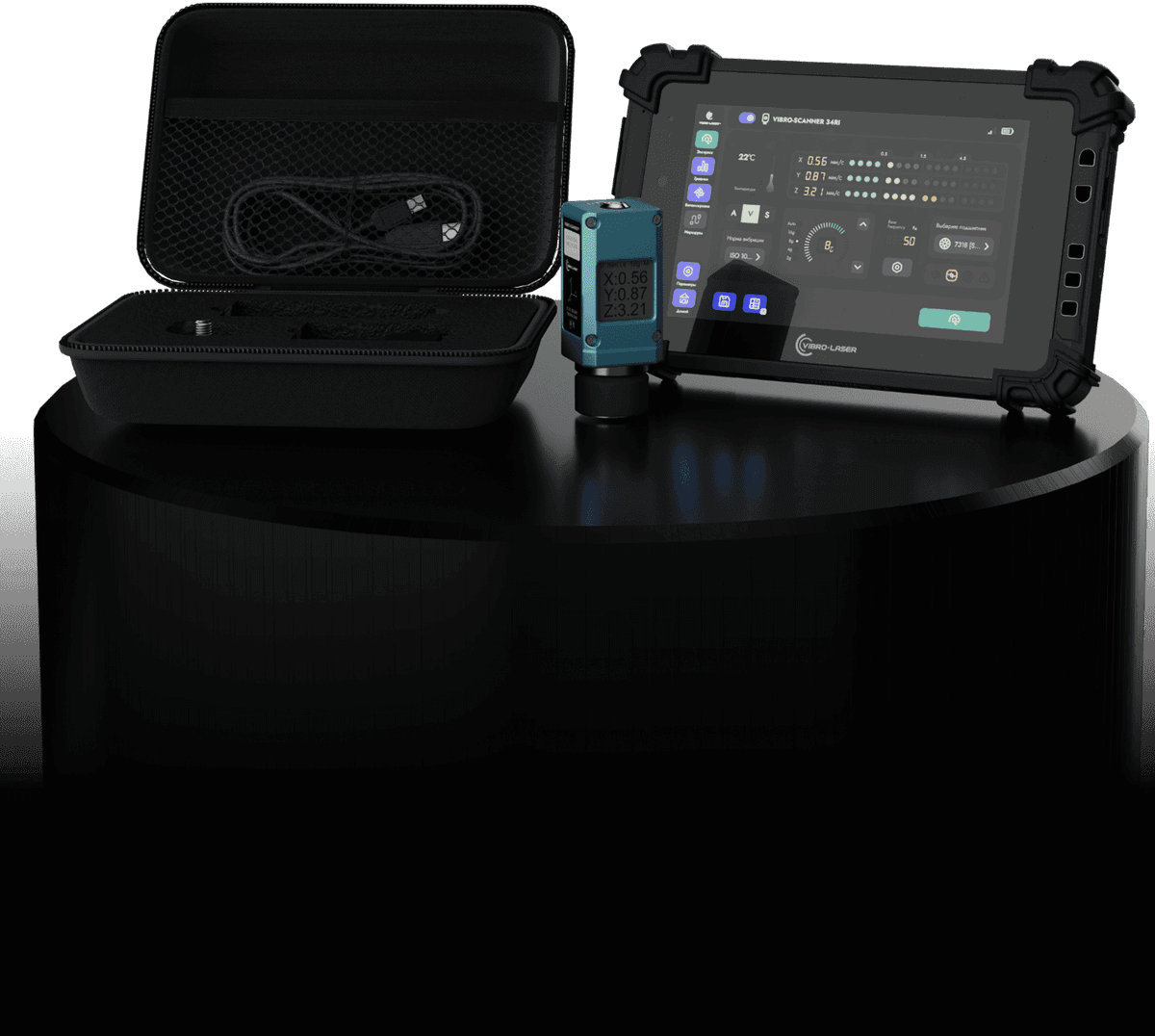

Case content

VIBRO-SCANNER BASE

VIBRO-SCANNER BASE

(1 UNIT)

It is intended for measuring vibration levels, performing equipment diagnostics, and balancing. The device records data along the X, Y, and Z axes and displays the information both in the application and on its integrated screen

CASE WITH CUSTOM INSERT

CASE WITH CUSTOM INSERT

(1 UNIT)

A compact and lightweight case with a custom insert for the device

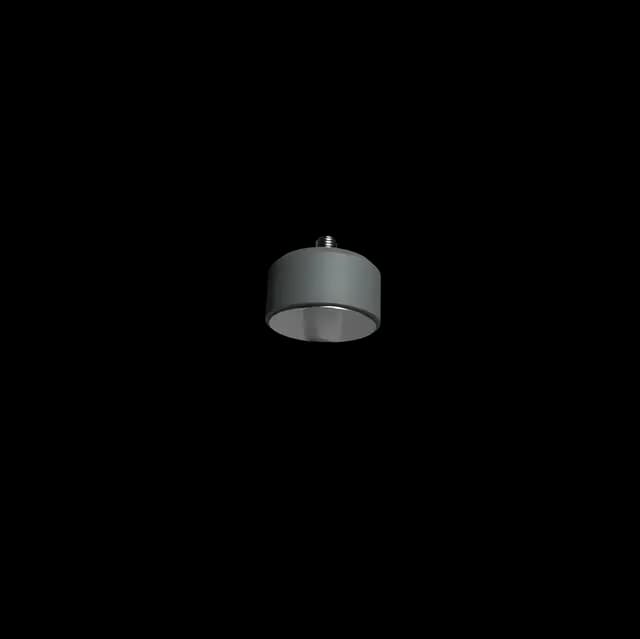

RETAINING MAGNET

RETAINING MAGNET

(1 UNIT)

Used to mount the VIBRO-SCANNER on equipment

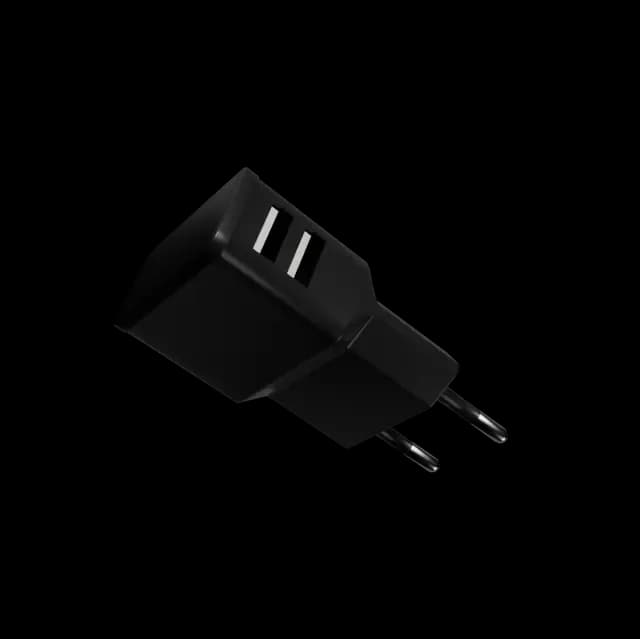

POWER ADAPTER

POWER ADAPTER

(1 UNIT)

The adapter is used together with the USB cable to charge the VIBRO-SCANNER

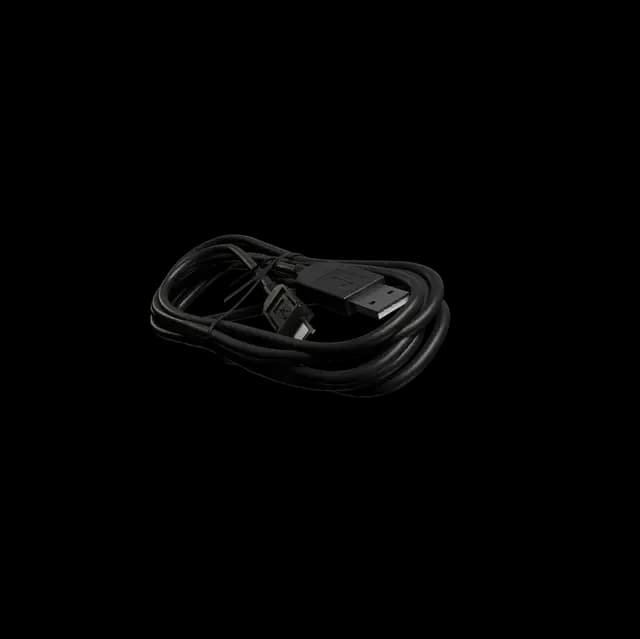

USB-CABLE

USB-CABLE

(1 UNIT)

The USB cable is used together with the adapter to charge the VIBRO-SCANNER

Technical Data

Frequency range (device screen), Hz10—1000
Axes3
Amplitude range, m/s²up to 150
Temperature range, °CIntegrated temperature sensor (−40…+105 °C)
Vibration measurement ranges2/4/8/16 g
Method of attachmentMagnet, stud
Sampling rate26 kHz
Own noise of the vibration sensor75 μg/√Hz
NutritionBattery
Relative error of measurement±5 %
Functions when connecting to an applicationGraphs and spectra 5—6000 Hz
